What is the difference between a furring channel and a stud?
The difference in design intention between the furring channel and the stud determines their essential differences in style, parameters, and usage. Below, a professional comparison will be made from the four core dimensions to help everyone accurately distinguish and select.
Furring channel, also known as overlay channel or secondary channel, is mainly in the form of a "groove type". There are two common types: Omega channeland C-type channel keel. The overall shape is a thin and long strip, with a cross-sectional design that focuses on fit and flatness, without obvious load-bearing protrusions. The edges are finely polished to facilitate tight fitting with decorative panels such as Gypsum Board and calcium silicate board, and installation holes are reserved for easy fixing and adjustment. This design makes it more suitable for leveling and auxiliary support of walls and ceilings, effectively covering the unevenness of the base layer and laying a smooth foundation for subsequent finishing construction.
Stud, also known as vertical keel or main keel, is mainly C-shaped in style and may also be U-shaped in some scenarios. They have a "slot like" cross-section with rolled edges on both sides and reinforced ribs in the middle. The overall thickness is thicker and the rigidity is stronger. The structural design pays more attention to load-bearing performance and stability. Its two ends can be directly connected to the U-truck channel, forming a complete wall frame. The rolled edge design not only enhances its own strength, but also effectively fixes the decorative panel to prevent it from falling off, making it the core load-bearing component of the wall partition.
As a professional supplier of light steel keel, Haofa International produces furring channel and stud column keel in accordance with international standards, with complete parameter specifications that can be customized according to the needs of different countries and construction scenarios. The core parameter comparison is as follows:
(1) The main purpose of the furring channel along the top keel

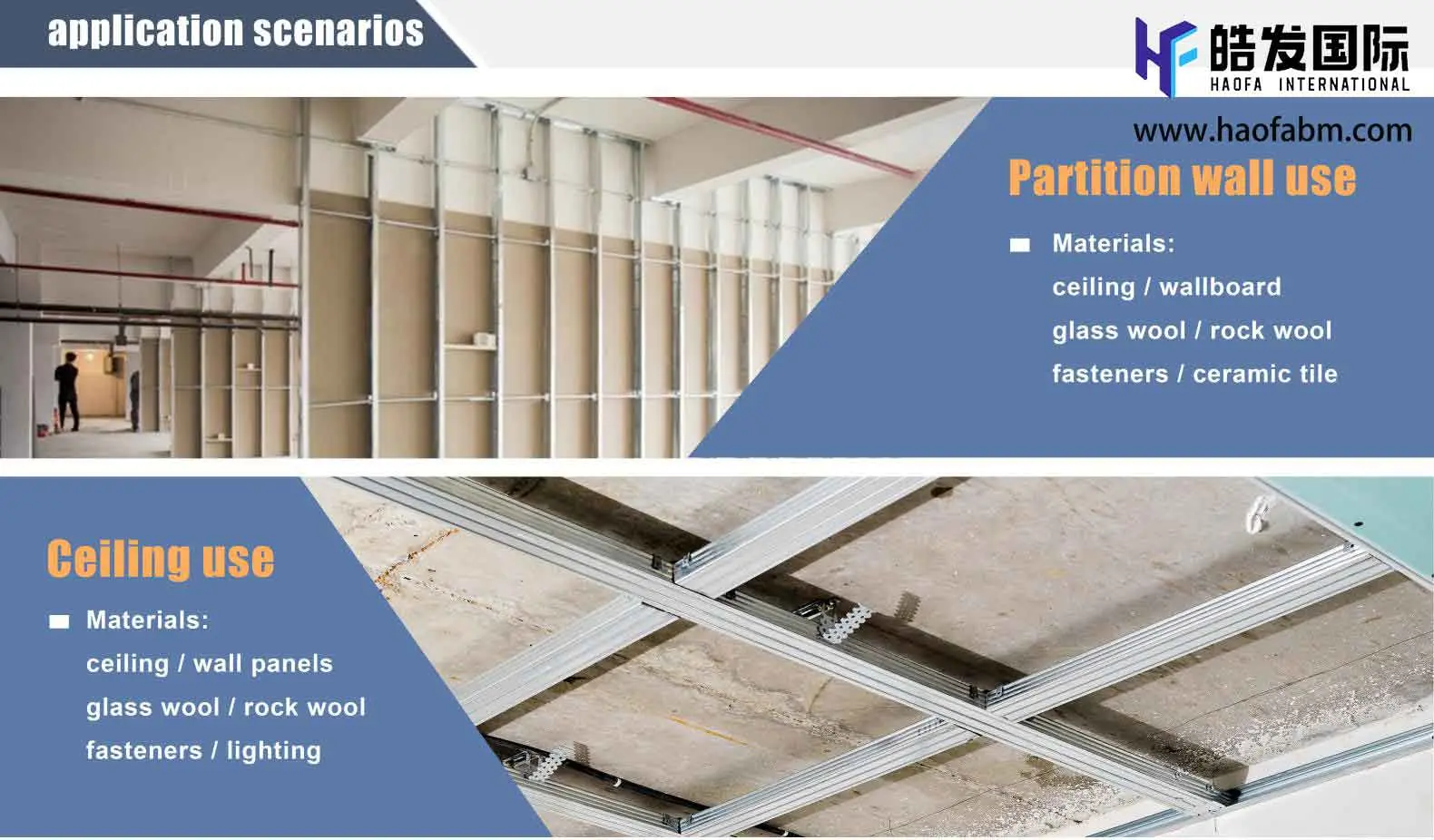

The core function of the furring channel is "leveling, auxiliary support, and sound insulation", mainly used in ceiling and suspended ceiling scenarios, and is the core auxiliary component of the suspended ceiling system:

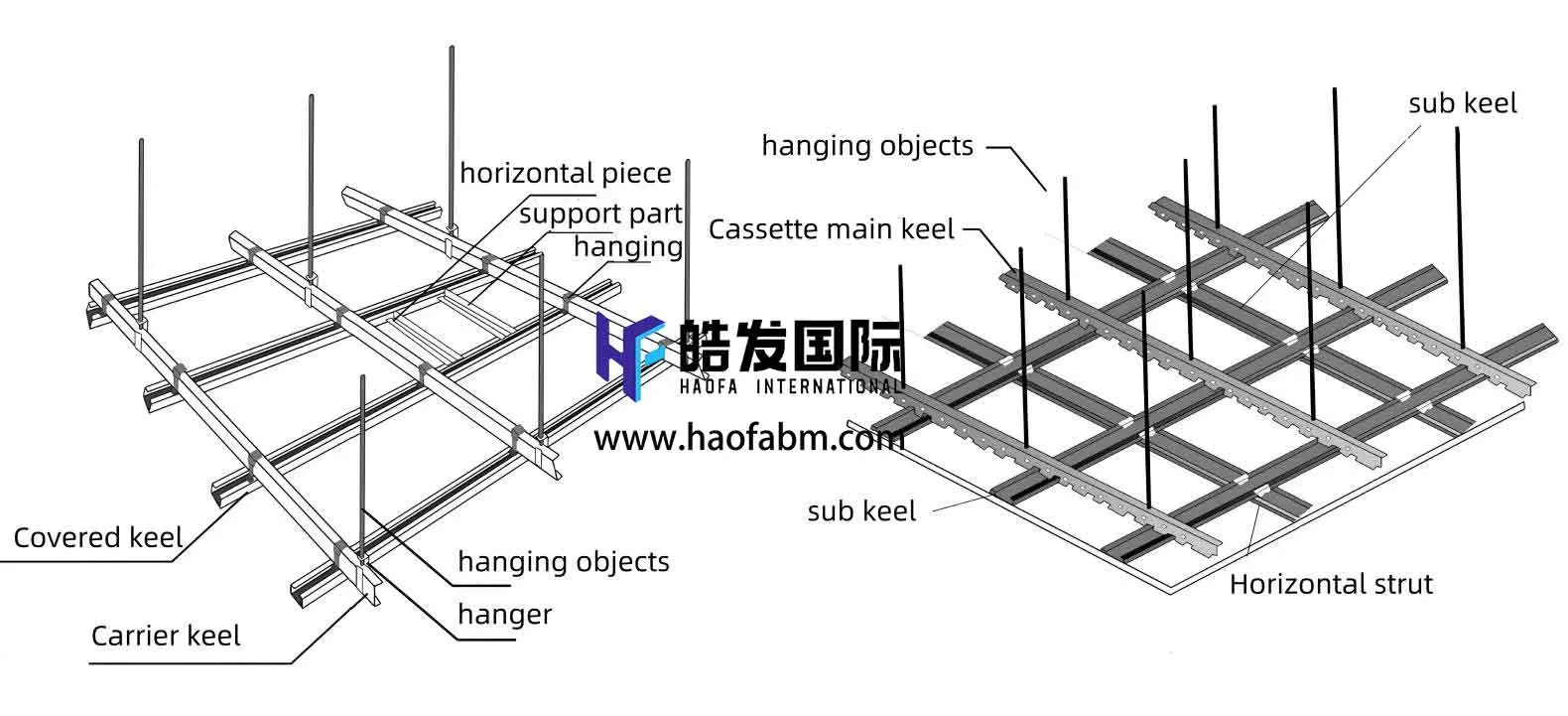

In ceiling scenes, the auxiliary keel is used along the top keel as a secondary keel, in conjunction with the main keel (U-shaped), installed perpendicular to the main keel, with a spacing of usually 300mm-600mm. It is used to fix ceiling decorative panels such as gypsum board and mineral wool board, and can also be filled with sound insulation cotton and thermal insulation cotton to improve the sound insulation and thermal insulation performance of the suspended ceiling. Haofa International's top keel, with precise dimensional tolerances, has high flatness after installation without the need for repeated polishing and adjustment, greatly improving construction efficiency. It is suitable for ceiling projects in various buildings such as residential, office buildings, shopping malls, hospitals, etc., especially for ceiling designs that require hidden pipelines and equipment. It can perfectly cover the wires, water pipes, air conditioning pipes, etc. on the ceiling and beautify the spatial form.
(2) The main purpose of column keel (stud)
The core function of column keel is to "bear weight, support, and build a framework", mainly used in wall partition scenarios, and is the core load-bearing component of partition systems:

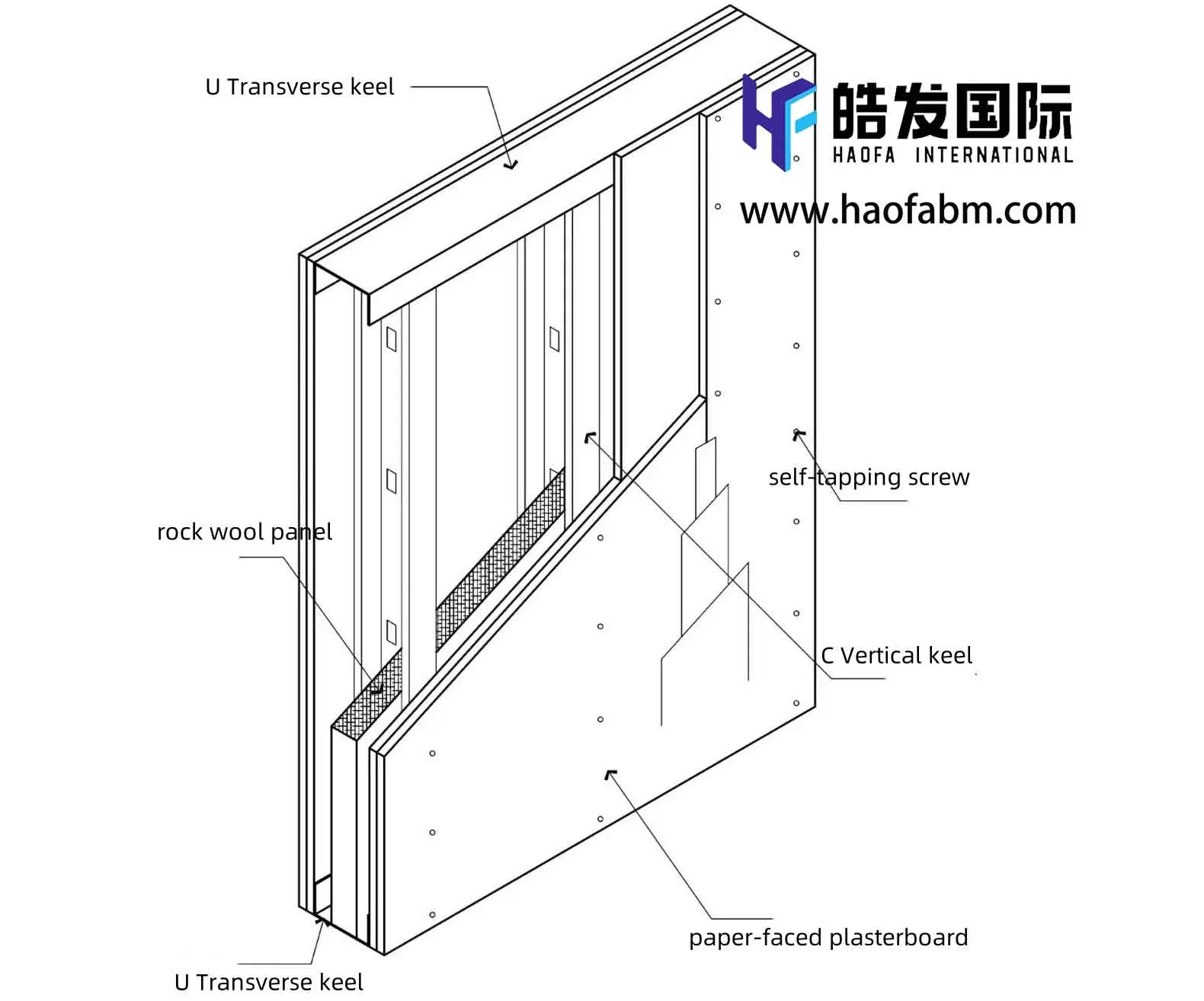

In the scene of wall partition, the column keel is installed vertically, and both ends are clamped with the U-shaped truck channel to form a complete wall frame, with a spacing of usually 400mm-600mm, used to fix the decorative panels on both sides, while bearing the weight of the wall itself and external loads, such as hanging heavy objects such as wardrobes, televisions, decorative paintings, etc. Haofa International's column keel, designed with reinforced ribs, has stronger rigidity and is less prone to deformation, effectively ensuring the verticality and stability of the partition wall. It is suitable for different thicknesses of partition walls -75mm wide stud column keel is suitable for ordinary indoor partitions, and 100mm-150mm wide stud column keel is suitable for partitions with high requirements for sound insulation and fire prevention, such as offices, conference rooms, hospital wards, and other scenarios.
In addition, column keels can also be used in conjunction with through hole keels and corner keels to enhance the seismic and impact resistance of partition walls, meeting the safety requirements of high-rise buildings and large commercial spaces. Its metal material characteristics make it have the advantages of fire prevention, moisture resistance, and moth prevention. Compared with traditional wooden keels, its service life can reach 20-30 years without frequent maintenance and replacement.
The installation along the furring channel is relatively simple and does not require complex splicing processes. It is usually fixed on the base layer (ceiling slab, wall base layer) using expansion bolts and self tapping screws. During installation, it is necessary to ensure uniform spacing and smooth surface. The connection with the main keel and decorative panel should be firm to avoid loosening and abnormal noise in the later stage. Haofa International's top keel can be directly used in conjunction with various connectors (hangers, pendants), greatly simplifying the installation process. Ordinary decorators can complete the keel installation of a 10 m2 ceiling in one day.
The installation of column studs should follow the process of "heaven and earth first, then columns". First, fix the heaven and earth studs, and then vertically clamp the column studs into the slots of the heaven and earth studs. Fix them with screws to ensure that the column studs are vertical and evenly spaced. If necessary, install through the hole studs to enhance the stability of the frame. During the installation process, it is necessary to set the spacing between the column keels reasonably according to the length and height of the partition wall to ensure that the load-bearing performance meets the standard. Haofa International's column keel is designed with precise slots at both ends, which have strong compatibility with the sky and earth keel. After installation, it is not easy to shift and can effectively improve the overall stability of the partition wall.
As an international trading enterprise with 25 years of experience in the decoration and building materials industry, Haofa International focuses on the supply of light steel keel. With high-quality products, complete specifications, and strict quality control, it has become a preferred partner in more than 50 countries and regions around the world. Its products are widely used in various projects such as residential buildings, commercial buildings, industrial plants, and public facilities, and have won high recognition from global customers.
high-quality products, complete specifications, and strict quality control, it has become a preferred partner in more than 50 countries and regions around the world. Its products are widely used in various projects such as residential buildings, commercial buildings, industrial plants, and public facilities, and have won high recognition from global customers.
Haofa International offers a complete range of light steel keel styles, including ceiling keels, partition keels, and various other styles such as Omega channel, U-shaped, C-shaped, and corner keels. We also provide various keel accessories such as hangers, pendants, connectors, suspension rods, and self tapping screws, forming a one-stop supply system to meet the personalized needs of different countries and construction scenarios. Whether it's leveling support for ceilings or load-bearing frames for wall partitions, whether it's simple decoration for ordinary residential buildings or complex construction for large commercial spaces, Haofa International can provide precise and adaptable product solutions.
Haofa International always puts product quality first. All light steel keel products are strictly produced in accordance with international standards and have passed CE certification and ROHS certification.
The CE certification complies with the requirements of the European Union Building Products Regulation (EU) No 305/2011 (CPR) and follows the EN 14195 "Metal Keel Systems and Supporting Components - Definitions, Requirements and Testing Methods" standard, ensuring that the safety performance, mechanical performance, fire resistance and anti-corrosion performance of the products meet international standards, and can smoothly enter the European Economic Area and multiple countries and regions around the world markets.
ROHS certification ensures that products do not contain harmful substances such as lead, mercury, cadmium, etc., comply with global environmental requirements, and adapt to the development trend of green buildings and environmentally friendly decoration. Whether it is home decoration or commercial engineering, it can guarantee human health and environmental safety. In addition, Haofa International has established a comprehensive quality control system, strictly controlling every link from raw material procurement, production and processing to finished product inspection, packaging and transportation, ensuring stable and reliable product quality, small batch differences, and meeting the bulk supply needs of large-scale projects.
After years of development, Haofa International has established a supply network covering more than 80 countries and regions around the world, including major markets in Europe, America, Africa, Asia, etc. With a professional foreign trade team and efficient logistics system, it can quickly respond to global customers' order requirements and provide one-stop services such as customized production, timely delivery, and after-sales follow-up. Whether it is small-scale sample procurement or large-scale engineering orders, Haofa International can ensure timely and high-quality delivery of products to customers with its rich foreign trade experience and perfect supply chain system.
At the same time, Haofa International has established deep cooperation with hundreds of high-quality supply chain factories in China, with a supply chain network covering more than 20 cities. It can quickly allocate various product resources, flexibly respond to market demand changes, and provide global customers with cost-effective light steel keel products, helping customers reduce construction costs and improve project quality
If you are looking for high-quality and cost-effective light steel keel products, whether it is along the top keel, column keel, or customized keel solutions, Haofa International will be your preferred partner, working together with you to build safe, stable, and environmentally friendly building spaces.
